The Complete BMW X5 G05 and 7 Series Steering Wheel Guide

Two quite different BMWs share a wheel catalogue. One is the X5 that tows a trailer and collects children in all weathers. The other is the 7 Series that carries passengers in the back and covers continents at a steady cruise. Both cabins are hushed, and both make a polished rim look tired. A custom BMW X5 steering wheel restores the one surface your hands meet every single day.

Reading the Chassis Before You Buy

Six codes cover the models on this page, and wheels do not travel freely between them. Find your row below, then confirm the detail with us before paying a deposit.

Chassis	Model and typical years	What usually matters
G05	X5, 2019 model year onwards	Sport and M Sport wheels differ in rim thickness and button frame
G18	X5 long wheelbase, China market	Same family as G05 in most builds, but verify the button set
G70	7 Series, 2023 model year onwards	Newest generation, larger centre and different spoke architecture
G11 / G12	7 Series, 2016 to 2022	Common upgrade target, with several trim levels across the run
F15	X5, 2014 to 2018	Older button layout, so confirm before ordering
E70	X5, 2007 to 2013	Older electronics again, confirm before ordering

Grey imports and long-wheelbase cars frequently fall outside these years. A chassis number and a couple of photographs will place yours accurately.

Why X5 and 7 Series Owners Change Wheels

Distance is the usual reason, and a BMW X5 steering wheel that suits one car may not suit the other. The specification matters. An X5 used for towing spends hours with both hands on the rim, and a 7 Series on a long cruise does the same. The leather at nine and three polishes long before anything else in the cabin wears, and that single shiny patch spoils an otherwise immaculate interior.

Comfort shapes the material choice. A rim that is a little thicker rests more easily in a relaxed grip over several hours. Quilted leather and Alcantara feel cooler on a hot afternoon than a plain hide, and they stay planted when your hands are warm. On a chauffeured car the front cabin still sets the tone, because the people in the back see it as they get in.

Materials for a Long-Distance Cabin

Three finishes cover most of the X5 and 7 Series work we do. Each BMW X5 steering wheel begins with the same question, and the answer changes the build. Each changes the character of the cabin, and the grid below sets out how they behave in service.

Gloss Twill Carbon

Gloss twill is the finish that reads most clearly as a performance option. The diagonal weave catches light along the top and bottom of the rim, with a deep clear coat over it. It does show dust, so a car kept under cover suits it best. Keep the material to the upper and lower sections and leave the grips to leather.

Quilted Cognac Nappa

The quilting carries the warmth of a luxury cabin. The padded pattern sits comfortably in the palm and looks deliberate rather than added. A cream contrast stitch lifts it further on a dark trim. If the car covers big mileage in summer, ask about perforations in the grip sections.

Alcantara on the Grips

Alcantara returns the strongest grip and the least reflection. It gathers oils from bare hands, so it asks for a soft brush now and then. Drivers who enjoy the car on a good road usually accept that in exchange for the feel.

Flat-Bottom for Taller Drivers

A flat lower section buys knee room and makes the wheel look more purposeful. It suits an M Sport X5 particularly well.

Finish	How it feels	Care	Suits
Gloss twill carbon	Crisp, reflective	Wipe over; shows dust	Cars kept under cover
Quilted Nappa	Padded and soft	Leather balm twice yearly	Family X5, long cruises
Smooth Nappa	Smoothest of the three	Simplest to clean	7 Series rear-seat duties
Alcantara grips	Maximum grip	Brush occasionally	Spirited driving

How to Confirm Your X5 or 7 Series Fitment

Four items normally answer it. Send the chassis number and the full option list. Add a daylight photograph of the wheel square on. Add a second photograph of its reverse, with the airbag taken out by a trained technician. Compatibility for a BMW X5 steering wheel turns on those details rather than on the badge.

From that set we read the spoke profile, the button cluster and the plug shape. Heated rims were bundled with different packs in different markets, so the option list often settles that question on its own. Nothing is built until the match is certain, and we will say so if a photograph cannot be judged.

What Keeps Working

A nicer rim should not cost you a single working control. We build on the frames and loom already fitted to your car.

Function	Typical outcome
Airbag	Original module normally reused; cover built to suit it
Multifunction buttons	Retained when the original button frame is reused
Paddle shifters	Retained on cars that have them; cut-outs specified at order
Heated rim	Depends on the heating element and trim; confirm first
Driver assistance	Depends on the hands-on detection fitted to the original wheel

A couple of details are worth a closer photograph. The heating mat was specified differently across packs, and the hands-on sensing that the assistance systems rely on lives inside the original rim.

Donor Core or Fresh Build

On a donor build the existing wheel keeps its electronics, because only the rim is rebuilt. Frame, connector and paddles all remain as BMW made them, which is the lower-risk route on a newer car.

A fresh core built to the same dimensions is the alternative. It suits a leased X5 that has to return to standard, or an owner who wants the factory wheel stored safely. Older E70 and F15 cars are often simpler again, since sound used wheels for those generations are easy to come by.

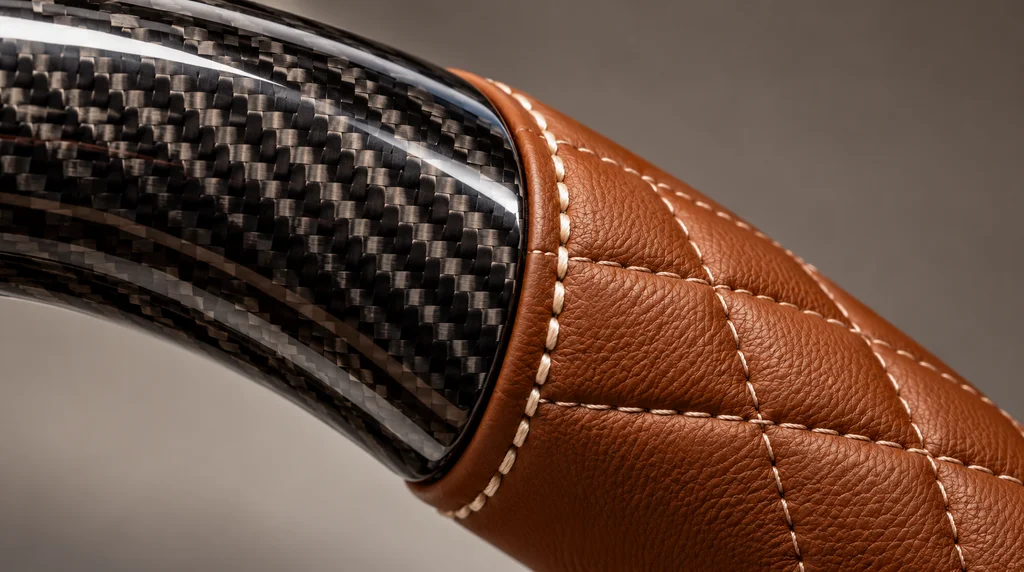

Carbon, Quilted Nappa and Stitch Work

Most X5 and 7 Series orders combine two materials. Gloss twill carbon along the upper and lower rim suits a light-coloured cabin best. The grips take quilted cognac Nappa. The combination decides how a BMW X5 steering wheel looks in daylight. A cream stitch then ties the wheel to the rest of the trim.

Wheel Shape and Knee Room

A full circle suits a 7 Series and any X5 that spends its life on the motorway, because the rim stays continuous through every input. A flat lower section appeals to taller drivers and to anyone who likes the M Sport look. Neither alters the steering itself. Pick on comfort and on how you want the cabin to read.

Fitting, Torque and the Airbag

Leave this to someone who has dealt with an airbag before. Isolate the battery and let the car shut down fully before undoing anything. Follow BMW's own procedure for your chassis instead of a generic online write-up. The airbag module is delicate and should be set down with care. The centre fastener goes back to the figure in the workshop manual, and no other source should be used for that number.

Then drive gently and check the wheel sits straight. Work through every button in turn, plus the paddles if fitted, and test the horn. A warning lamp that stays lit means the car needs a diagnostic read before you carry on driving.

Modification and warranty cause more worry than they deserve. An aftermarket steering wheel does not automatically void a vehicle warranty under U.S. federal warranty law, but warranty coverage can still depend on whether the modification caused the specific failure being claimed.

Coding: When It May or May Not Be Required

Coding comes up on nearly every enquiry, and the truthful answer depends on the car in front of us. Where the factory module, the loom and the vehicle-specific parts are all reused, additional coding may not be required. Fitting a module from another generation is a separate case, and the control unit may then need to be told what is present.

Because that varies from car to car, we call coding a possible step rather than a certainty. Send the chassis number with photographs of both sets of electronics and we will tell you whether a workshop visit looks likely.

Common Compatibility Problems

What goes wrong tends to fall into a few familiar groups. Most cases begin with the assumption that a wheel from a neighbouring generation will bolt straight on, which the button cluster usually rules out. A heated rim on a car that never had one leaves an unused plug and a control that does nothing. The reverse error appears just as often. Assistance systems depend on the sensing parts inside the factory rim, so swapping them can trigger messages. The quiet failures are cosmetic, such as a cover shaped for an M Sport airbag turning up on a standard car. Working through the four-item check removes every one of these.

Pre-Order Checklist

• Chassis number and model year, read from the car rather than the paperwork.
• The complete option list, including any heated wheel or assistance pack.
• A daylight photograph of the wheel square on.
• A photograph of its reverse with the airbag out, taken by a technician.
• Which controls the car has: paddles, a heated rim or multifunction buttons.
• Left-hand or right-hand drive.
• Whether you want a full circle or the flat-bottom shape.
• The two materials you have chosen, and where each one goes.
• The stitch colour, and whether a twelve o'clock stripe is wanted.
• Whether your wheel acts as the donor or we build a fresh core.

Owner Questions

Will one wheel serve an X5 and a 7 Series?

No. The centres and button clusters belong to different families, so each car needs its own build even when the finish matches.

Does the heated rim survive?

In most cases yes, provided the factory rim was heated and we can match the matting. We confirm that from photographs before any work begins.

Must I send my own wheel?

Only for a donor build. A fresh core leaves your factory wheel with you, which suits a leased car.

How long does it take?

Allow ten to fifteen working days for production and fifteen to twenty days for shipping. Budget twenty-five to thirty-five days overall.

Is the airbag disturbed?

The factory module goes back in unmodified. That is why the fitment check comes first, and why a technician should take it out.

Is a flat lower rim awkward?

Not in normal use. The flat part sits at six o'clock and stays clear of your hands.

Why Choose YINGGENE

Every rim we sell is cut, stitched and assembled in our own Guangzhou workshop. Sixteen years of design and production experience sit behind the patterns in the catalogue, and no wheel is started until an order is placed. The material, the stitch and the shape are your choices; we check each one against your chassis before a single piece is cut. Orders ship worldwide with tracking, and each carries a three-year warranty with thirty days for returns under an RMA request.
